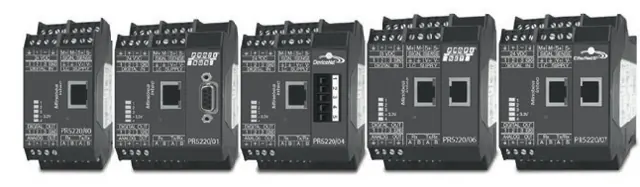

PR5220 TCP/IP Ethernet Transmitter
Standard features
- Configuring via VNC
- OPC server
- Full digital signal processing with up to 4.8 Mio divisions internal resolution
- SmartCalibration feature for fast calibration even without weights
- Requires supply voltage of 24 VDC
- IP20 housing, DIN rail mount
- Verifiable with remote display up to 10,000 e, CL III (EN 45501, OIML R76)
- Precision analog output
- Serial RS-485/422 interface
- CD supplied with software suite
- 10,000 divisions at six samples per second
Specifications
- Power Consumption
- 6 W/8 W (Versions /01, /04, /06, /07)
- Supply Voltage
- 24 VDC, ±20 %
- Analogue Output
- 0 to 10 or 4 or 20 mA, internal resolution 16-bit, usable step-width: 0.5 µA max. load 500 O; user configurable
- Serial Interfaces
- RS-422/485 via screw terminals Protocol: Remote display, SMA and Minebea digital scales (XBPI–protocol)
- Electrical Connections
- All electrical connections via modular screw terminals for 2.5 mm 2 max. System Phoenix/COMBICO
- Input Range
- 7.5 mV (appr. 4.8 Mio. div.)
- Usable resolution
- 0.2 µV/d
- Input Signal
- Measuring signal: 0 to 36 mV (for 100 % nominal load)
- Control Outputs
- Quantity: 3 opto-isolated output, passive Voltage: max. 30 VDC Current: max. 30 mA Functions: Limits, weight status
- Control Inputs
- Quantity: 3, opto-isolated input, passive Functions: zero setting, taring Voltage: max. 30 VDC Current: max. 10 mA
- Ethernet Interface (functions)
- Ethernet IP and Modbus/TCP Definition of an IP address: – AutoIP; – DHCP Server classification; – manual entering of an IP address Automatic detection of signal transmission and corresponding change over (cross-over or patch cable) Webservice via SOAP|UPnP (Simple Object Access Protocol) Synchronal Modbus UDP
- In/Output
- All I/O circuits fully galvanically isolated from sensor input and supply
- Load Cell Connection
- All strain gauge load cells; four- or six-wire connection
- Load Cell Supply
- 12 V, short-circuit proof. External load cell supply possible
- Digital Filter for Load Cell
- 4th order (low pass), Bessel, aperiodic or Butterworth
- Minimum Load Impedance
- Min. 75 ohm e.g. 6 load cells with 600 ohm or 4 load cells with 350 ohm
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| PR5220 | Ethernet TCP/IP |
| 158856 | PR5220/00 940515220003 |
| 158858 | PR5220/04 940515220043 Transmitter, 4 to 20 mA with |
| 158859 | PR5220/06 940515220063 Transmitter, 4 to 20 mA with |
| 158891 | PR5220/07 940515220073 Transmitter, 4 to 20 mA with |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 858. Specifications are subject to change without notice.
