Standard features

Designed with forklift pockets for portability
Rugged washdown design, rigid 304 stainless steel frame constructed with continuous welds
Meets HACCP requirements
Manual drop-in-place safety bars
Four stainless steel, hermetically sealed, IP69K shear beam load cells with 30 ft cables
20 ft of SURVIVOR® EL147HE hostile environment cable for connecting junction box to indicator
Internally mounted junction box
1/4 in top plate
Four adjustable stainless steel SUREFOOT™ support feet

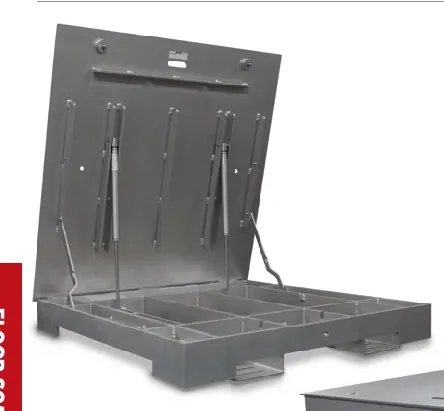

Top plate opens 75 degrees
Tool-less top plate lock downs
Top plate available with a smooth deck or diamond treadplate scale into pit frame

Specifications

End Load Capacity: 100% full scale at 5,000 lb 80% full scale at 10,000 lb
Cable Length: 20 ft (6.1 m) for connecting junction box to indicator
Scale Weldment: AISI304L, glass bead blasted for even appearance
Junction Box: TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
Welding: Continuous
Threaded Eyebolt: Two 1/2-20 NF threaded eyebolt holes for lifting scale into pit frame
Warranty (limited): Weldment: Five years Load cells: Two years All other components: One year
Approvals: NSF cFMus

Models & part numbers

Available configurations.

Part / model	Description
193284	4 ft × 4 ft × 7 in 10,000 lb (5,000 kg)
193287	4 ft × 4 ft × 7 in 5,000 lb (2,500 kg)

Options & accessories (2)

28740	Floor stand for indicator, 36.3 in high, stainless steel
18778	Floor anchor plates, stainless steel (set of two)

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 360. Specifications are subject to change without notice.
