Rice Lake · Floor Scales

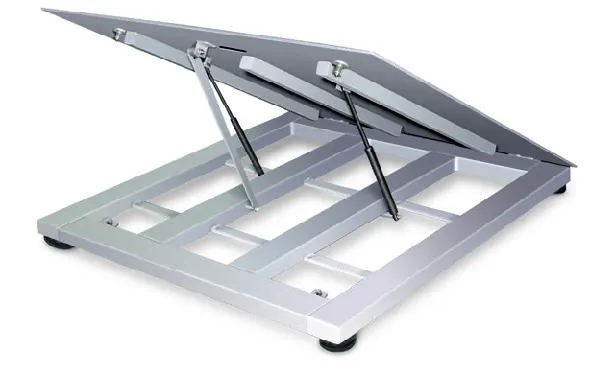

RoughDeck® QC
Quick Clean Stainless Steel Lift Floor Scale
Standard features
- Rugged washdown design
- Smooth, 304 stainless steel top deck
- Rigid 304 stainless steel tube frame
- Meets HACCP requirements
- Manual drop-in-place safety bar
- Four stainless steel, hermetically sealed, IP69K shear beam load cells
- 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
- Remote junction box can be mounted up to 10 ft away from the scale
- 3/16 in thick smooth top plate
- 4 adjustable stainless steel SUREFOOT™ support feet
Specifications
- End Load Capacity
- 100% full scale at 2,000 lb and 5,000 lb 80% full scale at 10,000 lb
- Cable Length
- 20 ft (6.1 m) for connecting junction box to indicator
- Scale Weldment
- AISI304L, glass bead blasted for even appearance
- Junction Box
- TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
- Welding
- Stitch, consult if continuous is required
- Threaded Eyebolt Hole
- 1/2-20 NF located in center of deck for easy lifting
- Warranty (limited)
- Weldment: Five years Load cells: Two years All other components: One year
- Approvals
- NTEP 92-001, Class III 5,000 d Load cell is NTEP Load cell is cFMus Approved
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 50402 | 2.5 ft × 2.5 ft × 3.5 in 2,000 lb (1,000 kg) 158 lb |
| 50403 | 3 ft × 3 ft × 3.5 in 2,000 lb (1,000 kg) 208 lb |
| 50404 | 4 ft × 4 ft × 3.5 in 2,000 lb (1,000 kg) 338 lb |
| 50405 | 4 ft × 4 ft × 3.5 in 5,000 lb (2,500 kg) 338 lb |
| 50406 | 4 ft × 4 ft × 4.5 in 10,000 lb (5,000 kg) 447 lb |
| 50407 | 4 ft × 5 ft × 3.5 in 2,000 lb (1,000 kg) 406 lb |
| 50408 | 4 ft × 5 ft × 4.5 in 5,000 lb (2,500 kg) 406 lb |
| 50409 | 4 ft × 5 ft × 4.5 in 10,000 lb (5,000 kg) 540 lb |
| 50410 | 4 ft × 6 ft × 4.5 in 2,000 lb (1,000 kg) 477 lb |
| 50411 | 4 ft × 6 ft × 4.5 in 5,000 lb (2,500 kg) 477 lb |
| 50413 | 5 ft × 5 ft × 4.5 in 2,000 lb (1,000 kg) 478 lb |
| 50414 | 5 ft × 5 ft × 4.5 in 5,000 lb (2,500 kg) 478 lb |
| 50415 | 5 ft × 5 ft × 4.5 in 10,000 lb (5,000 kg) 637 lb |
| 50416 | 5 ft × 7 ft × 5.5 in 2,000 lb (1,000 kg) 705 lb |
| 50417 | 5 ft × 7 ft × 5.5 in 5,000 lb (2,500 kg) 705 lb |
| 50418 | 5 ft × 7 ft × 5.5 in 10,000 lb (5,000 kg) 908 lb |
| 69193 | 2.5 ft × 4.0 ft × 3.5 in (works with PN 50402) 4.0º |
| 69194 | 3.0 ft × 4.0 ft × 3.5 in (works with PN 50403) 4.0º |
| 69195 | 4.0 ft × 4.0 ft × 3.5 in (works with PN 50404, 50405 and 50407) 4.0º |
| 69217 | 4.0 ft × 4.0 ft × 4.5 in (works with PN 50406, 50408, 50410 and 50411) 5.2º |
| 69222 | 4.0 ft × 5.0 ft × 5.5 in (works with PN 50412) 5.1º |
| 69219 | 5.0 ft × 4.0 ft × 4.5 in (works with PN 50413 and 50414) 5.2º |
| 69220 | 5.0 ft × 4.0 ft × 4.5 in (works with PN 50415) 5.2º |
| 69223 | 5.0 ft × 5.0 ft × 5.5 in (works with PN 50416, 50417 and 50418) 5.1º |
| 64769 | 3.0 ft × 3.0 ft × 4 in (works with PN 50403) - |
| 64770 | 4.0 ft × 4.0 ft × 4 in (works with PN 50404 and 50405) - |
| 64772 | 4.0 ft × 5.0 ft × 4 in (works with PN 50407) - |
| 64774 | 4.0 ft × 5.0 ft × 5 in (works with PN 50409) - |
| 64775 | 4.0 ft × 6.0 ft × 5 in (works with PN 50410 and 50411) - |
| 64776 | 4.0 ft × 6.0 ft × 6 in (works with PN 50412) - |
| 64777 | 5.0 ft × 5.0 ft × 5 in (works with PN 50413 and 50414) - |
| 64778 | 5.0 ft × 5.0 ft × 5 in (works with PN 50415) - |
| 64779 | 5.0 ft × 7.0 ft × 6 in (works with PN 50416, 50417 and 50418) - |
Options & accessories (2)
| 28740 | Floor stand for indicator, 36.3 in high, stainless steel |
| 18778 | Floor anchor plates, stainless steel (set of two) |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 361. Specifications are subject to change without notice.
