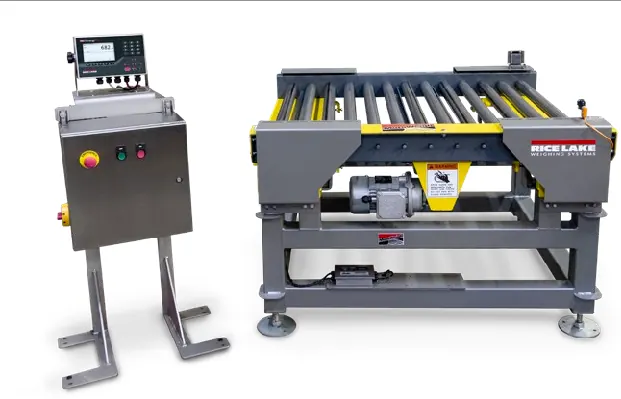

RT-D Roller Top In-Motion
Checkweighers and Conveyor Scales
Standard features
- Integrated overload protection
- Four load cell system
- Mild steel powder-coated frame
- Non powder-coated rollers
- Consult for custom sizes/capacities
- Weight threshold or single photoeye dynamic weighing modes
Specifications
- Package Size Range
- 8 × 4 × 4 to 44 × 32 × 24 in
- Capacity
- 100 × 0.1 lb 20 pcs/minute max 50 to 90 fpm
- Power
- Line voltage: 100 to 240 VAC, 50/60Hz Optional: 9 to 36 VDC
- Power Consumption
- 3.2W (AC) one 350 ohm load cell, 15W max; 4W four 350 ohm load cells or eight 700 ohm load cells
- Excitation Voltage
- 10 VDC (± 5 VDC), 8 × 350 ohm or 16 × 700 ohm load cells
- Analog Signal Input Range
- -5 mV to +70 mV
- Analog Signal Sensitivity
- 0.3 µV/graduation minimum 1 µV/graduation recommended
- A/D Sample Rate
- 6.25 to 120 Hz, software selectable
- Resolution
- Internal: 8,000,000 counts Display: 1,000,000
- System Linearity
- Within 0.01% full scale
- Digital I/O
- Four configurable I/O, 5 V logic
- (Optional) Analog Output
- 16-bit resolution, voltage output 0 to 10 VDC, current output 0 to 20 mA/4 to 20 mA
- (Optional) Relay Board
- Four normally open dry contact relays and can switch 20 to 250 VAC @ 3A or 30 VDC @ 3A. Use of external fusing to limit current is recommended. Relay COM-NO are transient protected to 400V @ 600W
- Communication Ports
- Two full-duplex RS-232 RS-485/422 (two-wire or four-wire) Micro USB (device) Ethernet TCP/IP (10/100) Wi-Fi
- Annunciators
- Zero, Gross/Net, Tare, Wi-Fi, WPAN
- Display
- Five-inch LCD, 800 × 480 pixel, 500 NIT
