Standard features

Integrated overload protection
Four load cell system
Mild steel powder-coated frame
Non powder-coated rollers
Consult for custom sizes/capacities

Specifications

Dimensions: (L × W × H) 54 × 36 × 30 in with ± 2.5 in height adjustment
Capacity: 100 × 0.05 lb
Approvals: Not available on RT-M
Power: Line voltages: 100 to 240 VAC
Excitation Voltage: 10 VDC (± 5 VDC), 16 × 350 ohm or 32 × 700 ohm load cells
Digital I/O: Four I/O onboard, primary keys, pseudo functions, batching functions
Communication Ports: RS-232 full duplex or RS-485 half duplex; USB micro A/B connector 2.0; Ethernet TCP/IP
Display: LED, 0.56 in (14 mm), six-digit, 14-segment with decimal or comma

Models & part numbers

Available configurations.

Part / model	Description

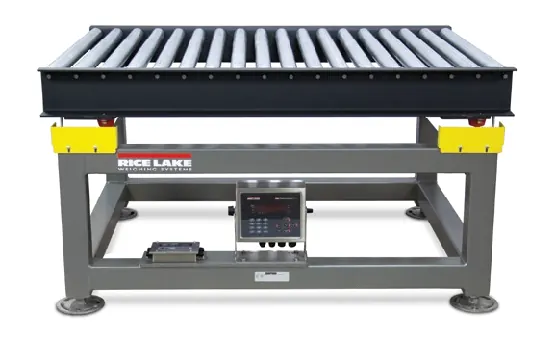

201732	MotoWeigh roller top scale 880 version
220912	Roller conveyor scale painted 680 version

Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 589. Specifications are subject to change without notice.
