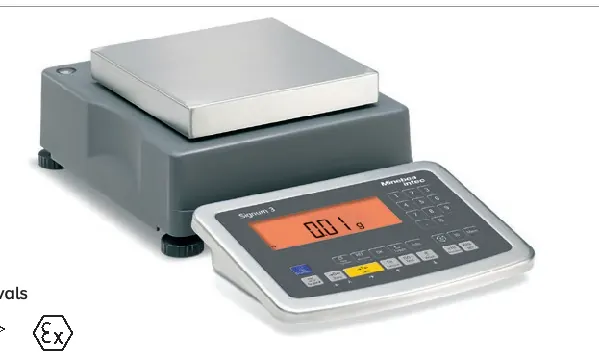

Signum® EX Supreme
Exposion-proof Bench Scale
Standard features
- Monolithic weighing system
- Resolution up to 620,000 d
- Stainless steel weighing pan
- Requires YPS02-XUR (RL # 46518), US hazardous area or YPS02-ZKR (RL# 46517) safe area connection
Specifications
- Power Supply Safe Area
- ATEX: YPSC01-Z FM/CSA: YPS02-ZKR (PN 46517)
- Power Supply Hazardous Area
- ATEX: YPSC01-X
- Battery Operatio n
- Via external battery YRB02-X (103068) Charger PN 103069
- Supply Voltage
- Via external power supply, connection via 14-Pin round socket (20 cm cable)
- Net Weight/Gross Weight
- SIWXSBBP, SIWXSBBS: 19.8/23.8 lb (9.0/10.8 kg) SIWXSDCP, SIWXSDCS: 33/39.6 lb (15.0/18.0 kg)
- Data Interfaces
- RS-232 Can be switched to RS-485 or RS-422 connection via 14-Pin round socket
- Temperature
- Operating: SIWXSBBP, SIWXSBBS: 50 °F to 104 °F (10 °C to 40 °C) SIWXSDCP, SIWXSDCS: 14 °F to 104 °F (-10 °C to 40 °C)
- Packaging Dimensions
- (L × W × H) SIWXSBBP, SIWXSBBS: 22.4 × 15.7 × 14.5 in (570 × 400 × 370 mm) SIWXSDCP, SIWXSDCS: 20 × 17.3 × 16.1 in (510 × 440 × 410 mm)
- Material
- SIWSXBBP, SIWXSDCP: Stainless steel display unit, painted platform with stainless steel load plate SIWXSBBS, SIWXSDCS: Brushed stainless steel
- IP Rating
- IP65 IP44 Zone 1 ONLY: SIWXSBBP, SIWXSBBS 1.3 lb (0.6 kg)
- Cable Length
- 2 m (6.6 ft) between display unit and platform
- Warranty
- Two-year limited, pending evaluation
- Approvals
- FM Class I, II, III; Div. 1; Groups ABCDEFG and T4 IECEX/ATEX Zone 1/2/21/22
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|
| 155866 | SIWXSBBP-3-06-H 1.3 × 0.000002 lb (0.62 kg × 0.001 g) Ø 5 in |
| 155867 | SIWXSBBP-3-3-H 6.8 × 0.00002 lb (3.1 kg × 0.01 g) 7.1 × 7.1 in |
| 155868 | SIWXSBBP-3-6-H 13.5 × 0.00002 lb (6.1 kg × 0.01 g) 7.1 × 7.1 in |
| 155870 | SIWXSDCP-3-35-H 75 × 0.0002 lb (35 kg × 0.1 g) 13.7 × 9.7 in |
| 155871 | SIWXSBBS-3-3-H 6.8 × 0.00002 lb (3.1 kg × 0.01 g) 7.1 × 7.1 in |
| 155872 | SIWXSBBS-3-6-H 13.5 × 0.0002 lb (6.1 kg × 0.01 g) 7.1 × 7.1 in |
| 155873 | SIWXSDCS-3-35-H 75 × 0.0002 lb (35 kg × 0.1 g) 13.7 × 9.7 in |
Options & accessories (9)
| 46518 | YPS02-XUR USA) (8 ft. of intrinsic cable and 8 ft. of cable requiring hard |
| 103066 | YPS02-XKR Canada) (8 ft. of intrinsic cable and 8 ft. of cable requiring |
| 46517 | YPS02-ZKR |
| 103055 | YDI05-ZU2 |
| 153218 | YDH01P Column for DCP platforms, height 19 in, painted |
| 155884 | YDH02P Column for BBP platforms, height 15.75 in, painted |
| 103068 | YRB02-X Rechargeable battery (requires 103069 battery charger) |
| 103057 | YCC422-X Cable without connectors for RS-422/ft |
| 102078 | 6971954 Power cord |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 849. Specifications are subject to change without notice.
