Standard features
- Duplex receptacle
- 20 ft ground cable
- Factory serviceable
- 9 ft cord with three-prong plug
- Plugs into any grounded three-prong outlet
- Indicator light to confirm secure protection
- Shielded line cord
- Scale, computer and printer protection
- Can mount on any surface
Specifications
- Protection Type
- 13-stage filters out both common and normal mode transients
- Voltage
- 120 VAC 50/60 Hz, nominal
- Maximum Current
- 10 A rms instantaneous 7.5 A rms continuous
- Clamping Time
- Less than three to five nanoseconds
- EMI/RFI Protection
- 13 stages
- Grounding
- 20 ft insulated #10 AWG wire provided
- Enclosure
- Stainless steel
- Temperature
- Operating: 14 °F to 104 °F (-10 °C to 40 °C)
- Circuit Board
- Fiberglass reinforced 4-glass epoxy
- Dimensions
- (L × W × H) 8.00 × 6.00 × 2.50 in
- Warranty
- One-year limited
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|

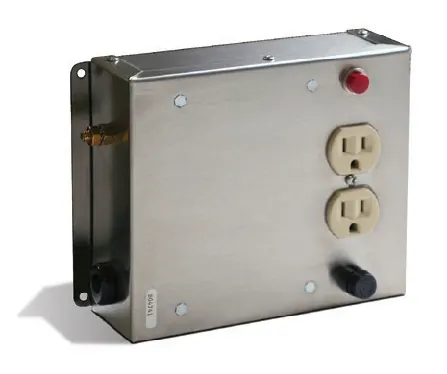

| 21136 | EL226 AC two-outlet transient protector, 115 VAC 6 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 823. Specifications are subject to change without notice.
