Standard features
- Maintains usable 120 V nominal output during brownouts as low as 87 V and overvoltages as high as 140 V
- 1,200 watts output power rating supports heavy 120 V loads up to 10 amps
- Network grade surge suppression rated at 1,200 joules
- Complete EMI/RFI noise filtering
- Seven diagnostic LEDs indicate input voltage levels, surge suppression status and line fault conditions
- Four protected NEMA Type 5-15R outlets
- Six-foot AC power cord with standard NEMA 5-15P input plug
- Two 5-15R outlets
- Convenient on/off switch
- Transistorized and solid state for long life and quiet operation
- Three-foot cord with DC plug
Specifications
- Input VDC
- 12 V
- Output VAC
- 120 VAC
- Frequency Hz
- 60 Hz
- Max Output
- Continuous: 375 watts Intermittent: 375 watts
- Input Amp
- No Load: 0.65 amps Full load: 40 amps
- Enclosure
- Non-sealed aluminum
- Dimensions
- (L × W × H) 7.00 × 4.25 × 2.00 in
- Warranty
- One-year limited
- Voltage/Frequency
- 120 V/60 Hz
- Cordset
- 6 ft
- AC Receptacles
- Four NEMA 5-15R
- LED Indicators
- Seven (very high voltage, high voltage, normal voltage, low voltage, very low voltage, line fault, line OK)
- Surge Energy Rating (Joules)
- 1,200
- High Frequency Noise Suppression at 1 MHz
- 80 dB
Models & part numbers
Available configurations.
| Part / model | Description |
|---|---|

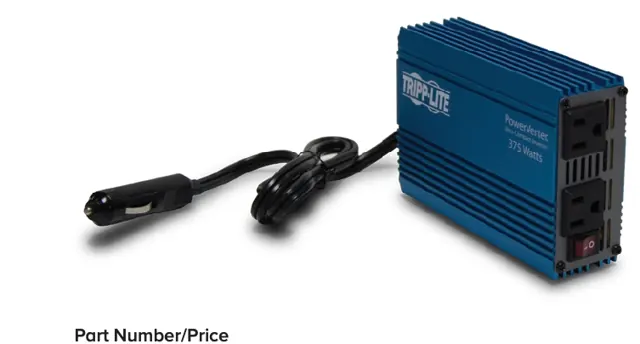

| 79679 | PV-375 3 lb |
| 70726 | LC1200, line conditioner four outlets, 1200 W 11 lb |
Pricing, availability, and lead times are confirmed in your quote. Source: Rice Lake Weighing Systems 2026 Master Catalog, page 825. Specifications are subject to change without notice.
